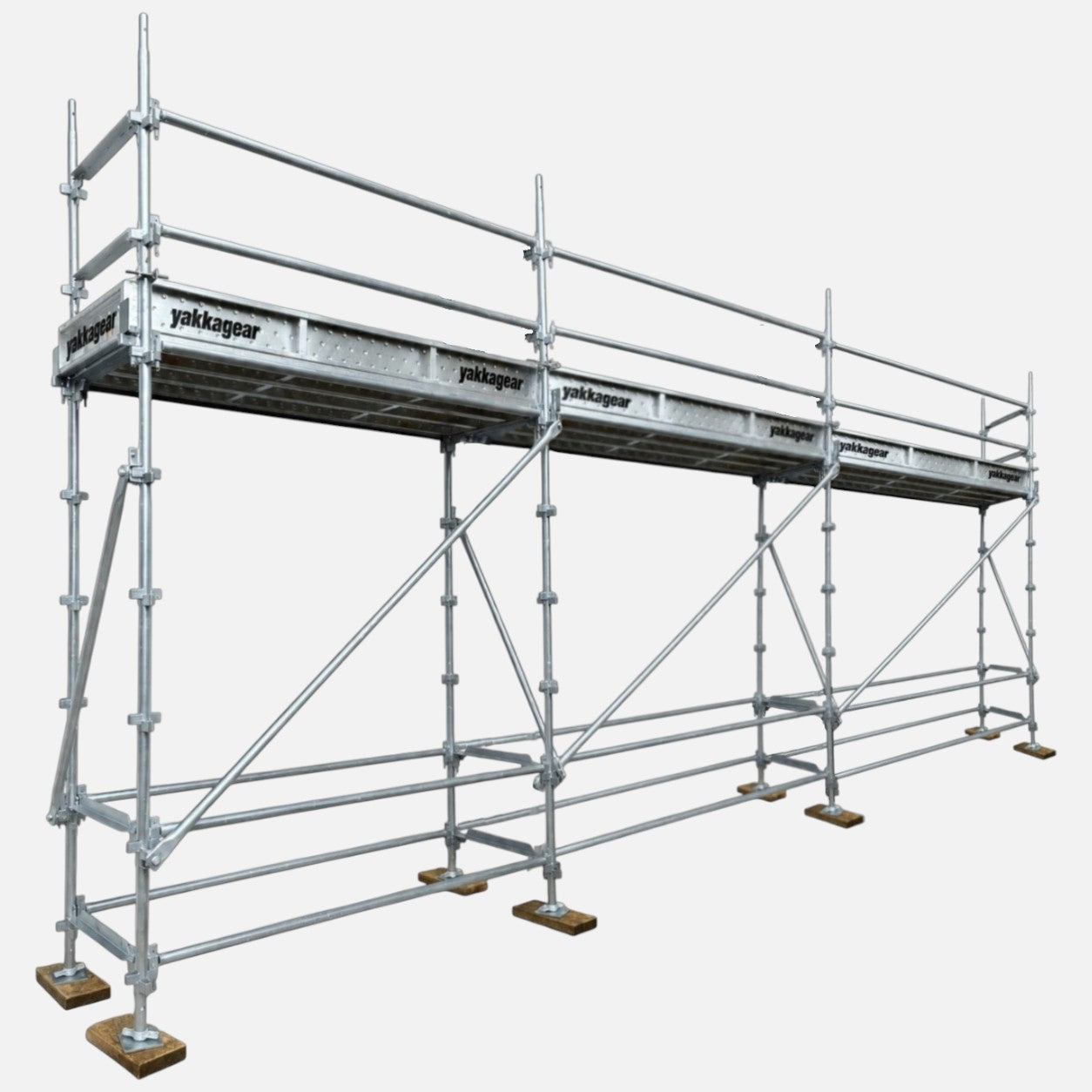

5m Reach Slim Kwikstage Single Deck - 7.2m Long
5m Reach Slim Kwikstage Single Deck - 7.2m Long
7.2m L x 0.7m W | 3m Platform | 5m Reach | Galvanised Steel
SKU
SKU:5.0mRS-7.2mL-1D-KS-GS-TS-SYPU
Payment options (click to see details)
Payment options (click to see details)
Choose Bank Transfer for lowest price guarantee. Credit Card option includes 2.65%, already reflected in the displayed price. Learn more
Please ensure your product selection for Bank Transfer or Credit Card matches your preferred payment method at checkout.
If your selection doesn’t match your payment method, don’t worry — we’ll contact you to sort it out. Alternatively, contact us for help with checkout
Collect your order from 2hrs or express delivery from next day. Get a delivery quote to calculate shipping. Super easy ordering in just 2 steps learn how it works.
Express delivery quoteDelivery available to Sydney, Melbourne, Brisbane, Gold Coast, Newcastle, Sunshine Coast, Wollongong, Canberra, and surrounding areas.
If "delivery required"
If "delivery required"
Shipping Cost Placeholder
A $100 shipping fee will appear at checkout as a placeholder. Actual delivery costs may vary—get a delivery quote for an accurate quote before completing your order. We will offer you a full refund if you choose not to proceed with finalising your order.
Leading Australia’s fastest delivery network:
- In many cases, even better value than picking up yourself
- Oversized items are accepted
- Delivery address accepted to residential, worksites or commercial
- Driver to call/SMS receiver 30 min - 1 hour before arrival
- Online tracking (when available)
Couldn't load pickup availability
Side by Side comparisons
Specifications & User Manuals
Kwikstage Scaffold FAQ
See more product choices
Contact Us

Scale Up, Scale Out
Scale up to 2 platform heights & scale out as long as you need
Built for builders, painters, renderers, maintenance crews and construction professionals, this galvanised steel Kwikstage scaffold package provides a durable, modular access solution for projects requiring up to 5m reach.
The scaffold features a 3m platform height with a 7.2m-long x 0.7m-wide single-deck configuration. Its extended 7.2m working length provides continuous access across larger walls, façades and work zones, while the slim 0.7m width helps minimise the ground space required.
This Kwikstage scaffolding package is suitable for exterior construction, painting, rendering, cladding, renovation and property maintenance. The modular galvanised steel system is designed for repeated trade and jobsite use, providing practical access across longer residential and commercial projects.
Available through separate Sydney, Brisbane and Melbourne pickup variants. Delivery can also be quoted based on the delivery location and site requirements.
Key features:
- Galvanised steel Kwikstage scaffold package
- Up to 5m working reach
- 3m platform height
- 7.2m-long x 0.7m-wide scaffold layout
- Single working-deck configuration
- Extended working length for larger walls and façades
- Slim-width design for restricted access areas
- Helps reduce repositioning across longer work zones
- Modular system for repeated trade and construction use
- Suitable for building, painting, rendering, cladding and maintenance
- Sydney, Brisbane and Melbourne pickup variants available
- Delivery quotes available on request
Made for the heaviest jobs on site
675kg load rating, heavy-duty galvanised steel kwikstage scaffolding
Choose Slim or Wide setups
- Slim Kwikstage: 0.7m single width platform
- Wide Kwikstage: 1.3m dual width platform.
-----
- Tight access or limited ground space?
Slim Kwikstage recommended. - More room for workers, tools and materials?
Wide Kwikstage recommended. - Working at one main height?
Single Deck setup recommended - Working across multiple levels or wanting less height repositioning?
Double Deck setup recommended - Covering a longer wall or work area?
Longer scaffolding combos recommended
Scale out as far as you need
- All Kwikstage scaffold bays start at standard 2.4m long
- Add more bays to create longer workflows
- Shop premade combos or go as long as you need
- Ideal for walls, facades, painting, rendering and maintenance work
Modular kwikstage design
- Extend, reduce, or reconfigure the scaffold as the job changes to make different heights, lengths, and number of working levels
- Interchangeable parts such as standards, decks, base jacks, and accessories
Note: Braces, transoms and ledgers must match the selected bay length and scaffold width
Get the right gear upfront
Customise it in the way that works best for you
Use your kwikstage scaffolding in different ways, in different places.
Rock solid grounding
A solid scaffold starts from the ground up. Hardwood soleboards help spread the load, while solid screw base jacks make it easier to level the scaffold on site, especially on uneven ground.
Steel Working Platform
Hollow, U-shaped galvanised steel planks provide strength without unnecessary weight.
Light to handle and finished with a non-slip surface, they create a dependable platform for standing, moving and working.
Galvanised Standards
These are the upright posts that give the scaffold its height and strength.
The galvanised standards feature welded connection points that allow ledgers, transoms and braces to lock securely into place.
Ledgers & Transoms
Ledgers run along the length of the scaffold, connecting the standards to distribute weight and improve stability.
Transoms run across the width, supporting the working deck while keeping the scaffold square and correctly spaced. Together, they reduce movement and strengthen the overall structure.
Diagonal Braces
Adds more structural support
Toe Boards
Toe boards help secure the edge protection around the platform and provide kickboard to prevent something sliding off the deck.
Choosing your scaffolding size
Platform Height:
- Height to stand on
Reach:
- Height reachable when on top of the platform
- Calculated by adding +2m to platform height for arm's reach
Environmental factors to consider:
- If the surface area is uneven, then you will typically require a taller size to compensate for the height loss
- Spacing between platform levels to help determine how many platforms you will require
6m reach side-by-side comparison
All lengths are built from connected 2.4m bays, with additional components added for each extra bay to create one continuous scaffold run with clear access between bays.
• Galvanised steel
• 675kg load rating
• Max height: approx. 6m reach
• Platform height: approx. 4m
• Customisable to create smaller reach setups
• Reach can be adjusted by lowering the platform to different rungs on the frame.
- Allow 1m above the working platform height for fall protection fencing
• Ladders not included
-

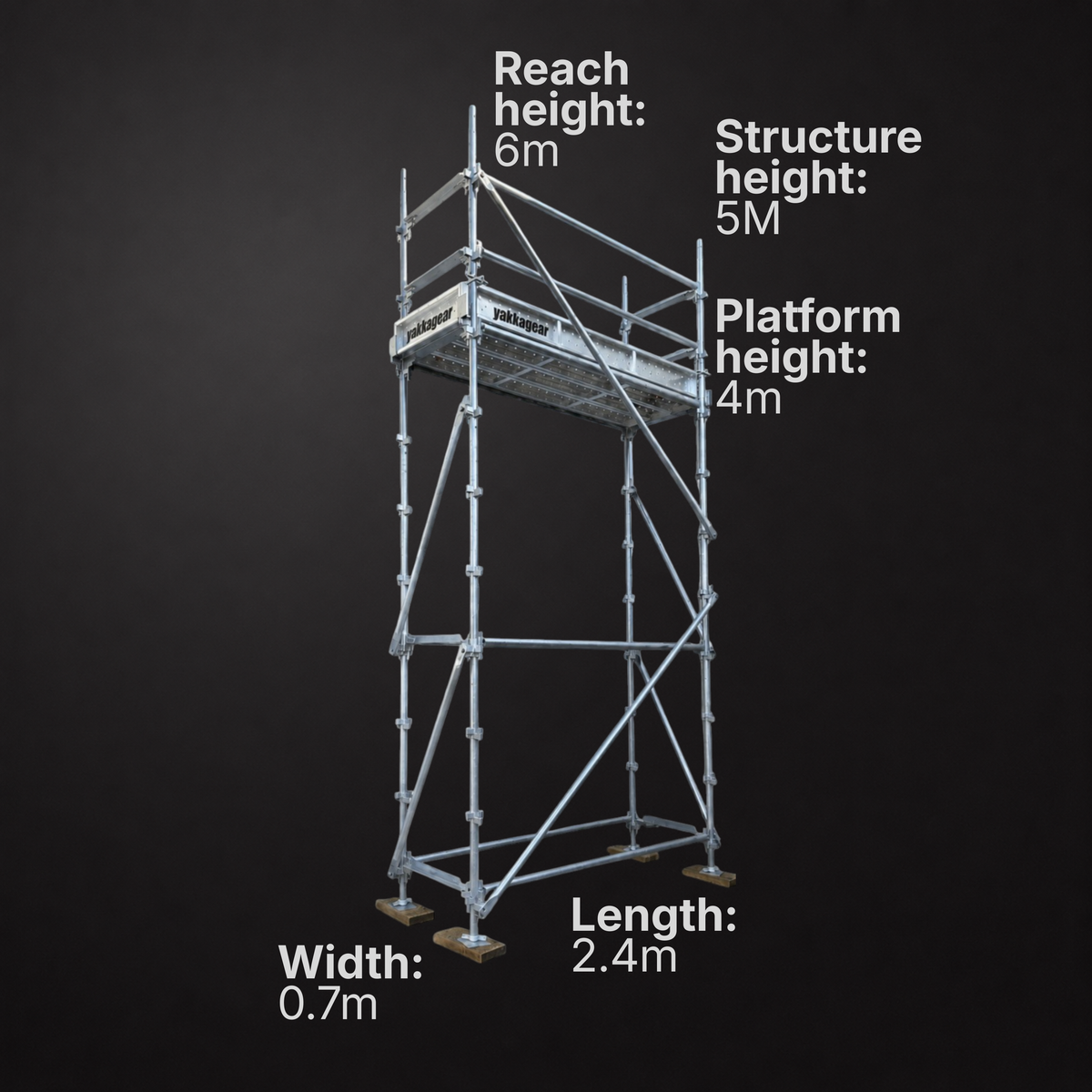

Slim Single Deck: 2.4m L x 0.7m W
Components:
• 4 x Hardwood Soleboards
• 4 x Solid Screw Base Jack
• 4 x 3.0m Standard - Galvanised
• 4 x 2.0m Standard - Galvanised
• 8 x 2.4m Ledger - Galvanised
• 10 x 0.7m Transom - Galvanised
• 2 x 3.2m Brace - Galvanised
• 4 x 1.7m Brace - Galvanised
• 4 x 2.4m Steel Plank - Galvanised
• 2 x 0.7m Steel Plank - Galvanised
• 2 x Toe Board Brackets - Galvanised
• 4 x End Toe Board Brackets - Galvanised -

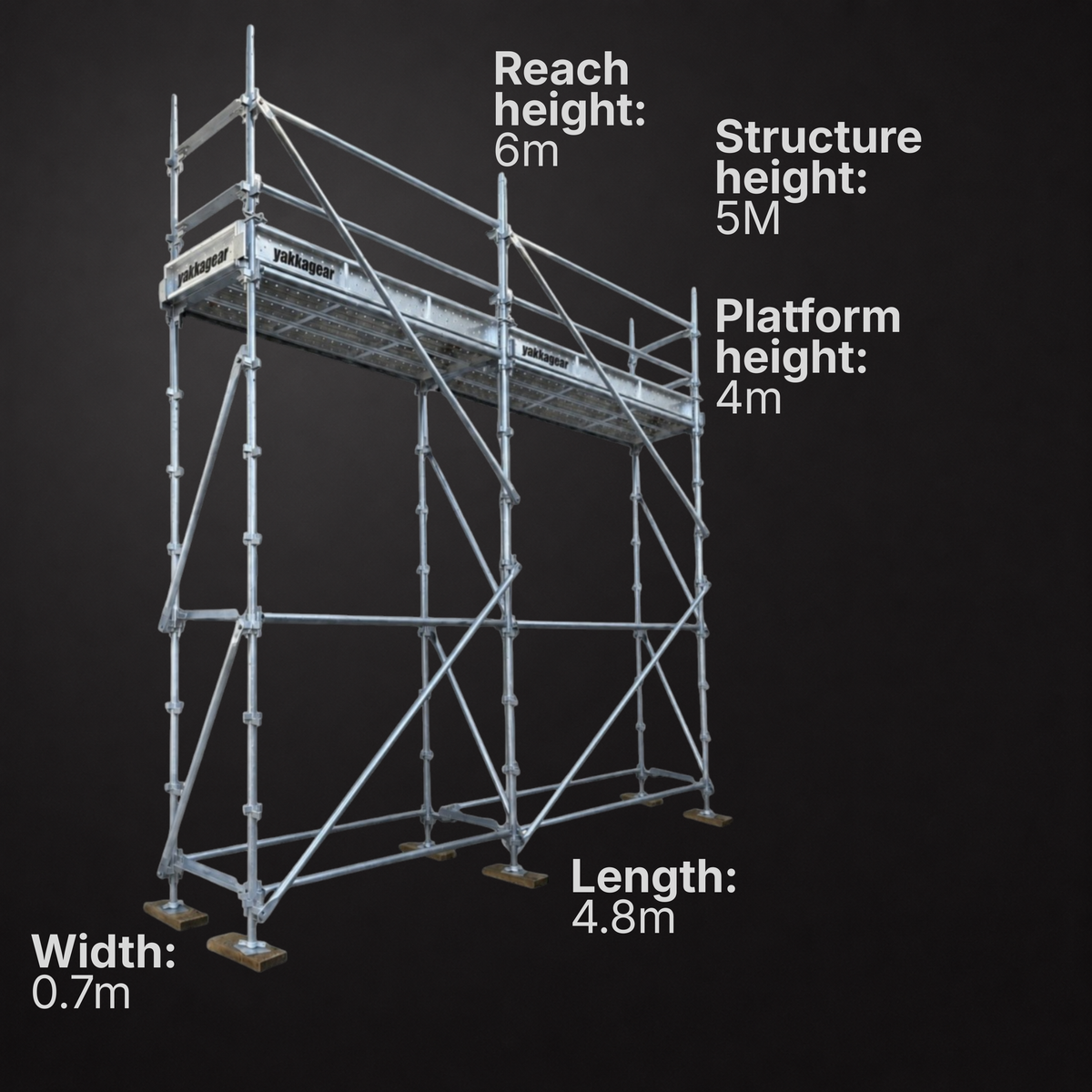

Slim Single Deck: 4.8m L x 0.7m W
Components:
• 6 x Hardwood Soleboards
• 6 x Solid Screw Base Jack
• 5 x 3.0m Standard - Galvanised
• 7 x 2.0m Standard - Galvanised
• 16 x 2.4m Ledger - Galvanised
• 13 x 0.7m Transom - Galvanised
• 2 x 3.2m Brace - Galvanised
• 4 x 1.7m Brace - Galvanised
• 8 x 2.4m Steel Plank - Galvanised
• 2 x 0.7m Steel Plank - Galvanised
• 3 x Toe Board Brackets - Galvanised
• 4 x End Toe Board Brackets - Galvanised -

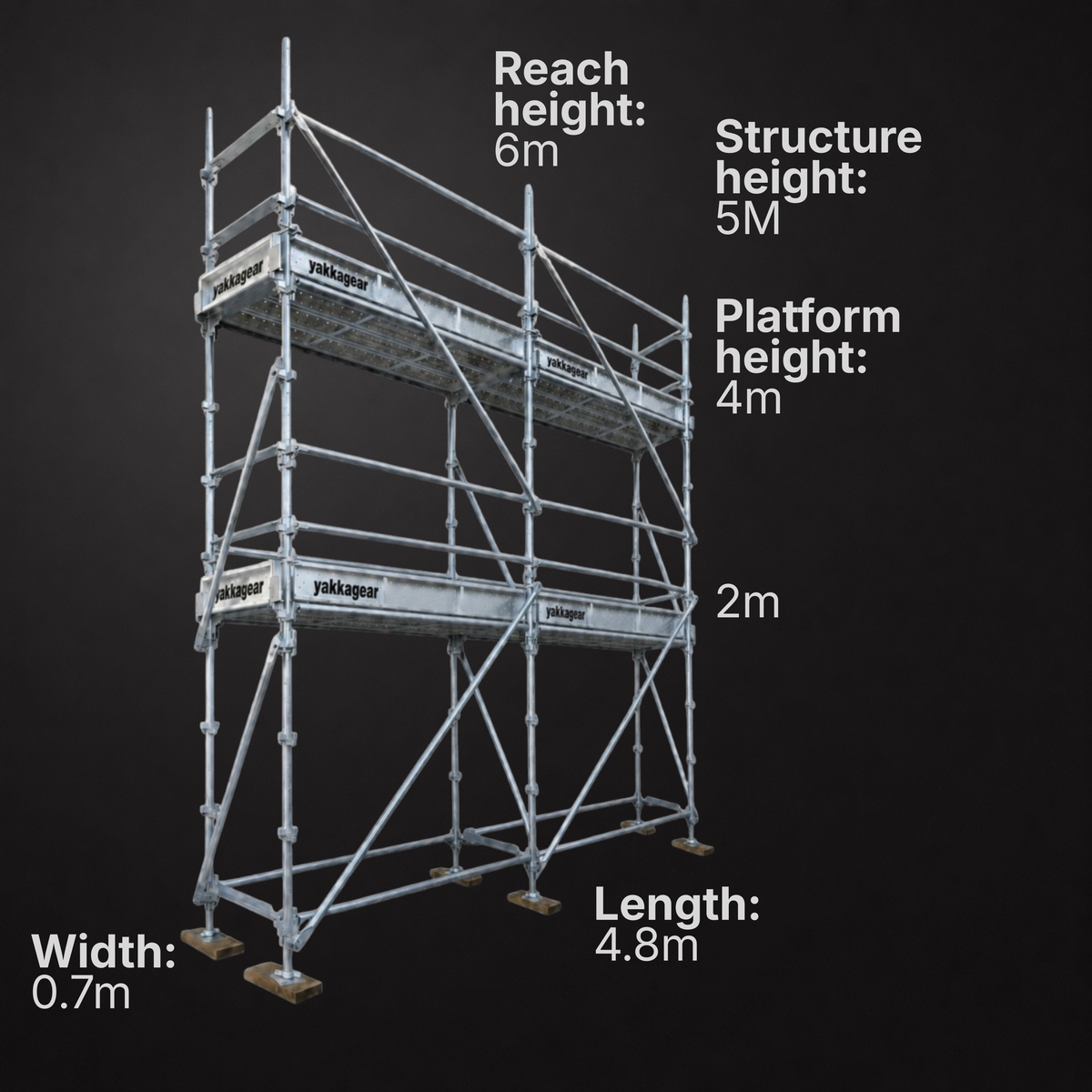

Slim Double Deck: 4.8m L x 0.7m W
Components:
• 6 x Hardwood Soleboards
• 6 x Solid Screw Base Jack
• 5 x 3.0m Standard - Galvanised
• 7 x 2.0m Standard - Galvanised
• 20 x 2.4m Ledger - Galvanised
• 17 x 0.7m Transom - Galvanised
• 2 x 3.2m Brace - Galvanised
• 4 x 1.7m Brace - Galvanised
• 16 x 2.4m Steel Plank - Galvanised
• 4 x 0.7m Steel Plank - Galvanised
• 6 x Toe Board Brackets - Galvanised
• 8 x End Toe Board Brackets - Galvanised -

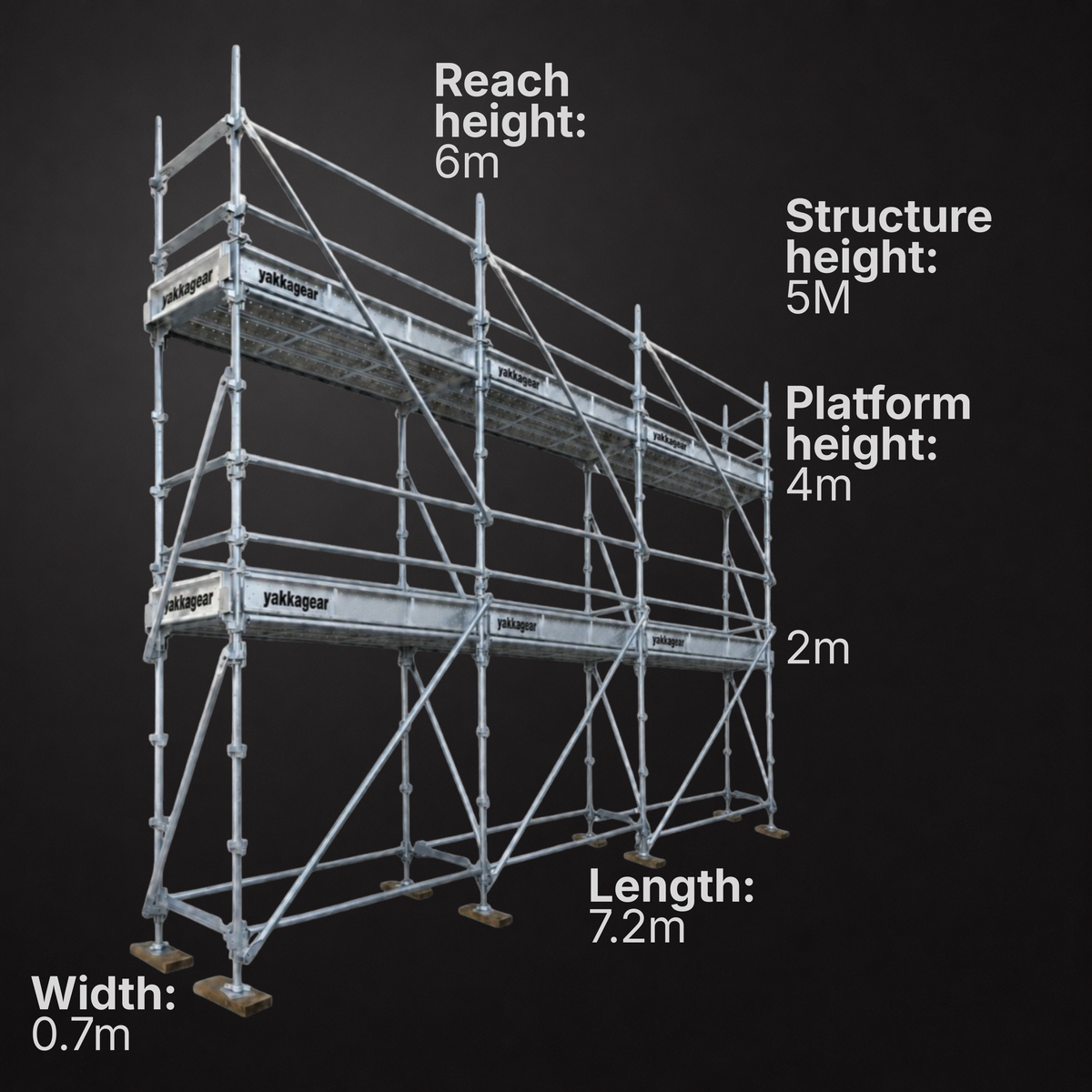

Slim Double Deck: 7.2m L x 0.7m W
Components:
• 8 x Hardwood Soleboards
• 8 x Solid Screw Base Jack
• 6 x 3.0m Standard - Galvanised
• 10 x 2.0m Standard - Galvanised
• 30 x 2.4m Ledger - Galvanised
• 20 x 0.7m Transom - Galvanised
• 2 x 3.2m Brace - Galvanised
• 4 x 1.7m Brace - Galvanised
• 24 x 2.4m Steel Plank - Galvanised
• 4 x 0.7m Steel Plank - Galvanised
• 8 x Toe Board Brackets - Galvanised
• 8 x End Toe Board Brackets - Galvanised -
Slim Double Deck: 9.6m L x 0.7m W
Components:
• 10 x Hardwood Soleboards
• 10 x Solid Screw Base Jack
• 7 x 3.0m Standard - Galvanised
• 13 x 2.0m Standard - Galvanised
• 40 x 2.4m Ledger - Galvanised
• 23 x 0.7m Transom - Galvanised
• 4 x 3.2m Brace - Galvanised
• 4 x 1.7m Brace - Galvanised
• 32 x 2.4m Steel Plank - Galvanised
• 4 x 0.7m Steel Plank - Galvanised
• 10 x Toe Board Brackets - Galvanised
• 8 x End Toe Board Brackets - Galvanised -

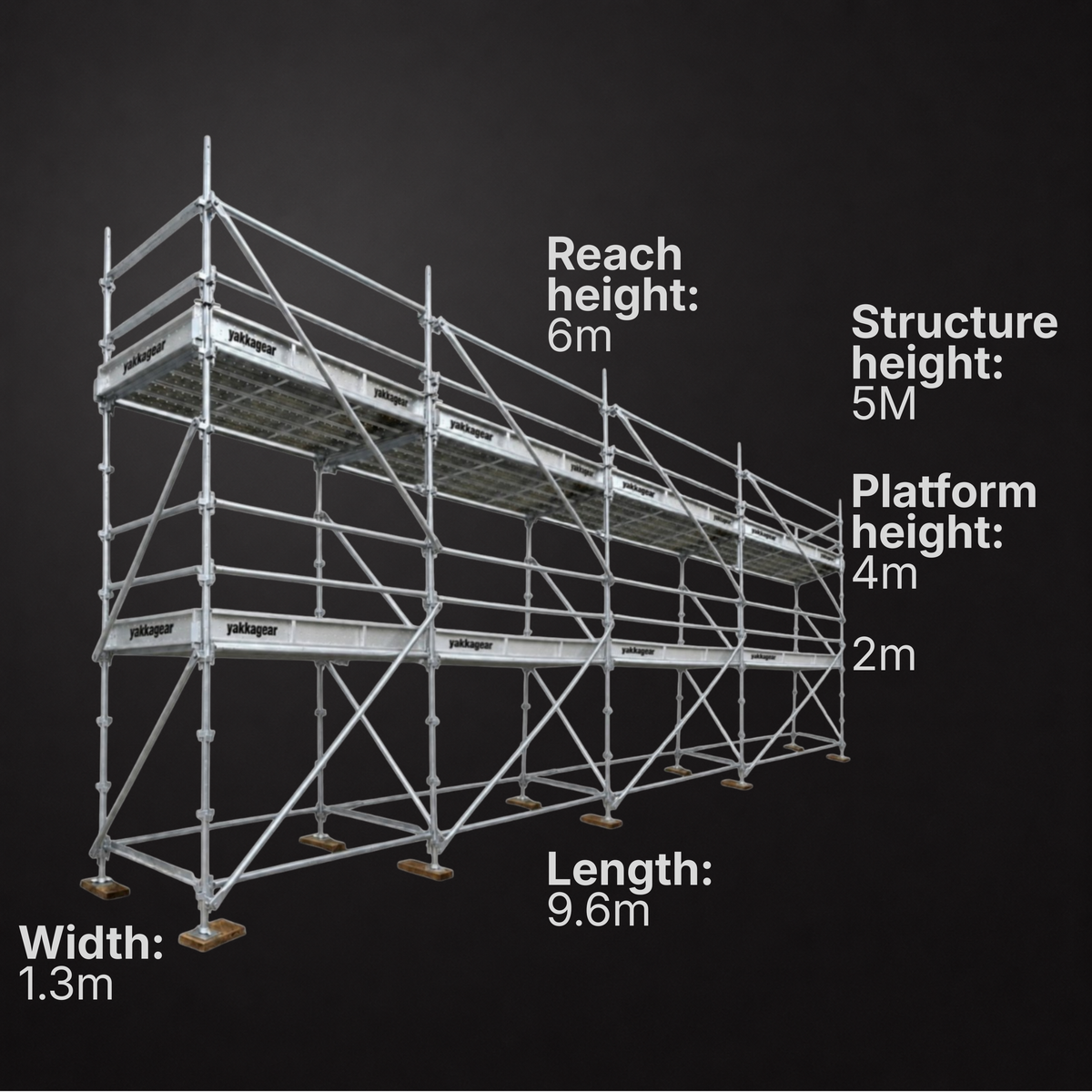

Wide Double Deck: 9.6m L x 1.2m W
Components:
• 10 x Hardwood Soleboards
• 10 x Solid Screw Base Jack
• 7 x 3.0m Standard - Galvanised
• 13 x 2.0m Standard - Galvanised
• 40 x 2.4m Ledger - Galvanised
• 24 x 1.2m Transom - Galvanised
• 4 x 3.2m Brace - Galvanised
• 4 x 2.0m Brace - Galvanised
• 48 x 2.4m Steel Plank - Galvanised
• 4 x 1.2m Steel Plank - Galvanised
• 10 x Toe Board Brackets - Galvanised
• 8 x End Toe Board Brackets - Galvanised
5m reach side-by-side comparison
All lengths are built from connected 2.4m bays, with additional components added for each extra bay to create one continuous scaffold run with clear access between bays.
• Galvanised steel
• 675kg load rating
• Max height: approx. 5m reach
• Platform height: approx. 3m
• Customisable to create smaller reach setups
• Reach can be adjusted by lowering the platform to different rungs on the frame.
- Allow 1m above the working platform height for fall protection fencing
• Ladders not included
-

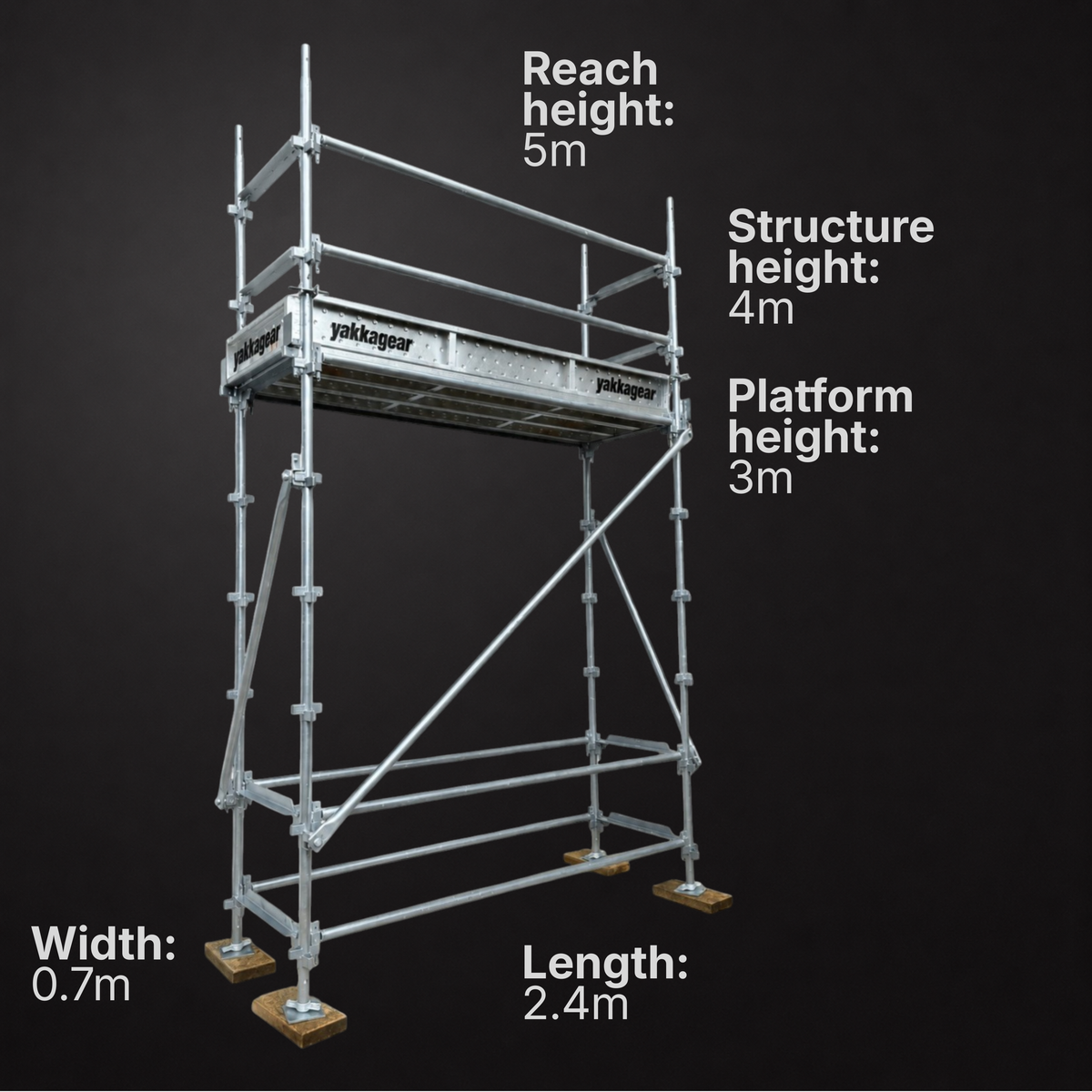

Slim Single Deck: 2.4m L x 0.7m W
Components:
• 4 x Hardwood Soleboards
• 4 x Solid Screw Base Jack
• 4 x 3.0m Standard - Galvanised
• 4 x 1.0m Standard - Galvanised
• 8 x 2.4m Ledger - Galvanised
• 10 x 0.7m Transom - Galvanised
• 1 x 3.2m Brace - Galvanised
• 2 x 1.7m Brace - Galvanised
• 4 x 2.4m Steel Plank - Galvanised
• 2 x 0.7m Steel Plank - Galvanised
• 2 x Toe Board Brackets - Galvanised
• 4 x End Toe Board Brackets - Galvanised -

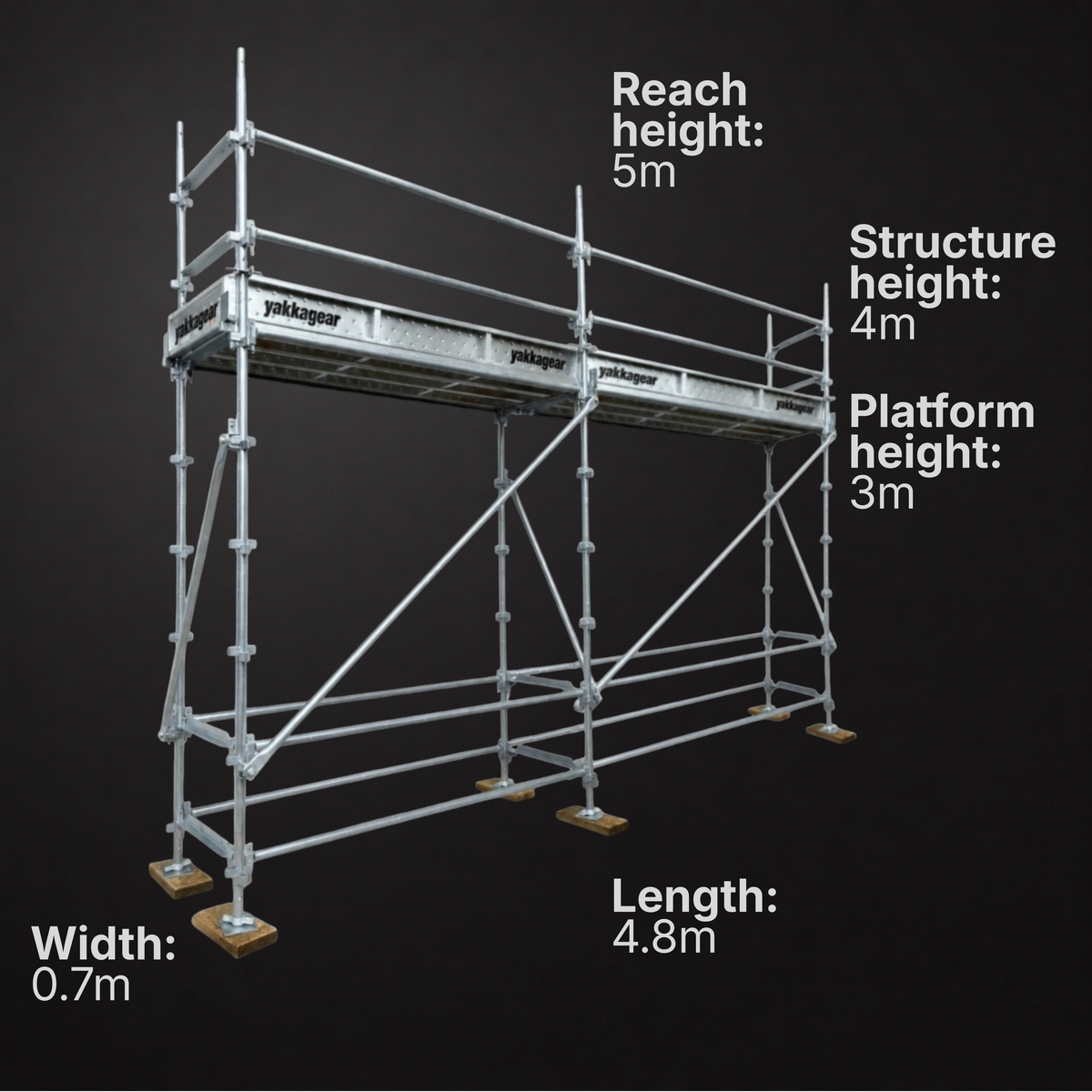

Slim Single Deck - 4.8m L x 0.7m W
Components:
• 6 x Hardwood Soleboards
• 6 x Solid Screw Base Jack
• 6 x 3.0m Standard - Galvanised
• 5 x 1.0m Standard - Galvanised
• 16 x 2.4m Ledger - Galvanised
• 13 x 0.7m Transom - Galvanised
• 1 x 3.2m Brace - Galvanised
• 2 x 1.7m Brace - Galvanised
• 8 x 2.4m Steel Plank - Galvanised
• 2 x 0.7m Steel Plank - Galvanised
• 3 x Toe Board Brackets - Galvanised
• 2 x End Toe Board Brackets - Galvanised -

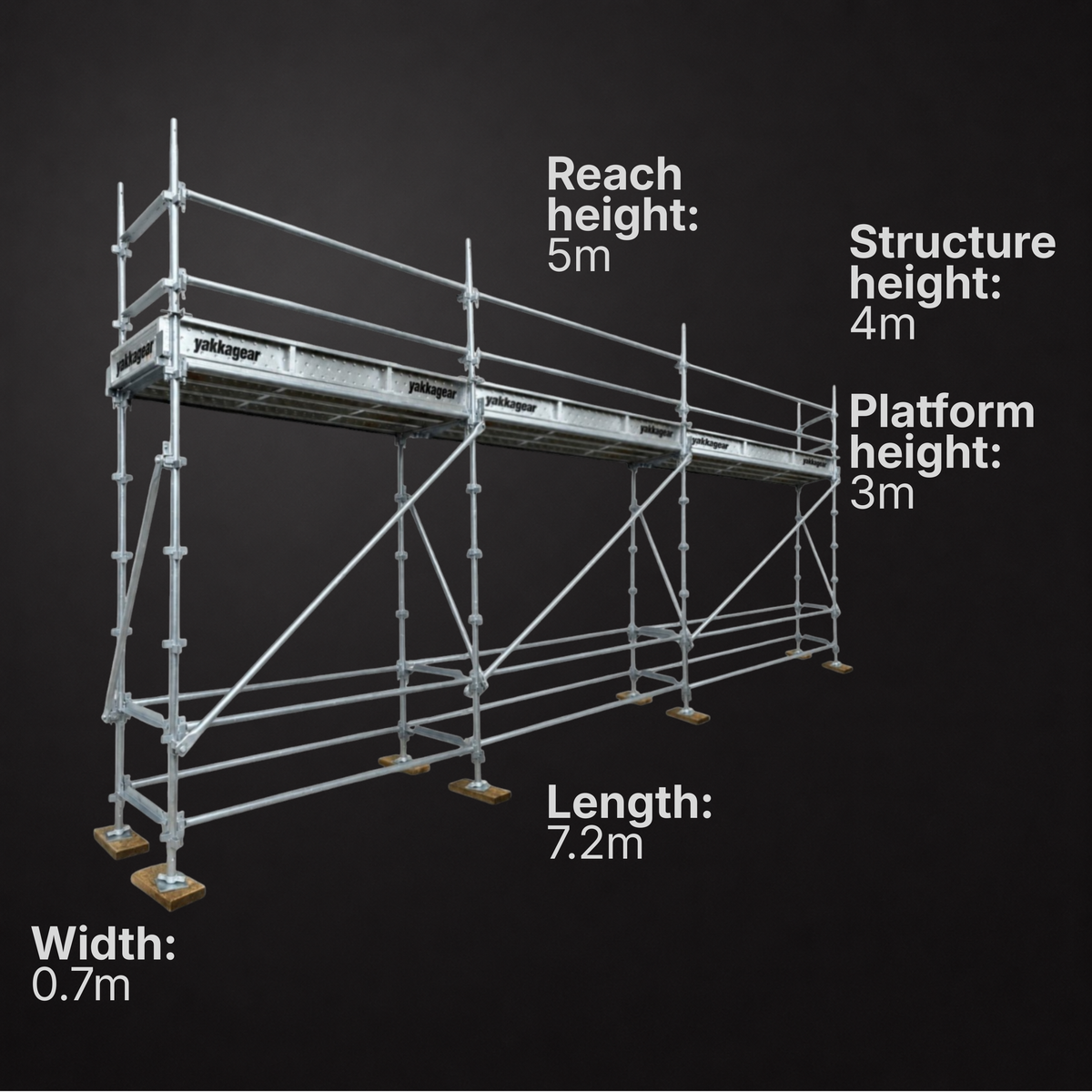

Slim Single Deck: 7.2m L x 0.7m W
Components:
• 8 x Hardwood Soleboards
• 8 x Solid Screw Base Jack
• 8 x 3.0m Standard - Galvanised
• 6 x 1.0m Standard - Galvanised
• 24 x 2.4m Ledger - Galvanised
• 16 x 0.7m Transom - Galvanised
• 2 x 3.2m Brace - Galvanised
• 2 x 1.7m Brace - Galvanised
• 12 x 2.4m Steel Plank - Galvanised
• 2 x 0.7m Steel Plank - Galvanised
• 4 x Toe Board Brackets - Galvanised
• 4 x End Toe Board Brackets - Galvanised -

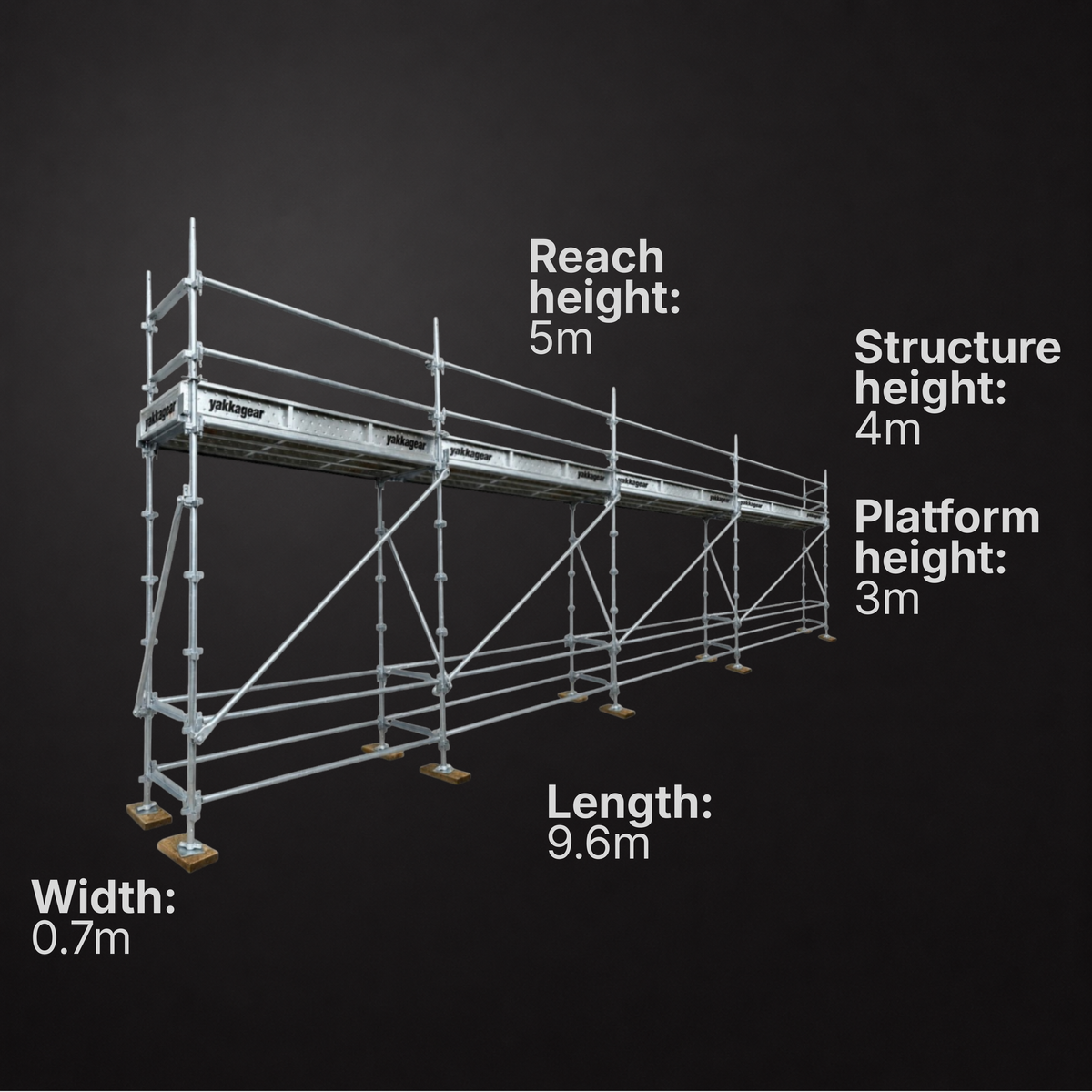

Slim Single Deck: 9.6m L x 0.7m W
Components:
• 10 x Hardwood Soleboards
• 10 x Solid Screw Base Jack
• 10 x 3.0m Standard - Galvanised
• 7 x 1.0m Standard - Galvanised
• 32 x 2.4m Ledger - Galvanised
• 19 x 0.7m Transom - Galvanised
• 3 x 3.2m Brace - Galvanised
• 2 x 1.7m Brace - Galvanised
• 16 x 2.4m Steel Plank - Galvanised
• 2 x 0.7m Steel Plank - Galvanised
• 5 x Toe Board Brackets - Galvanised
• 4 x End Toe Board Brackets - Galvanised -

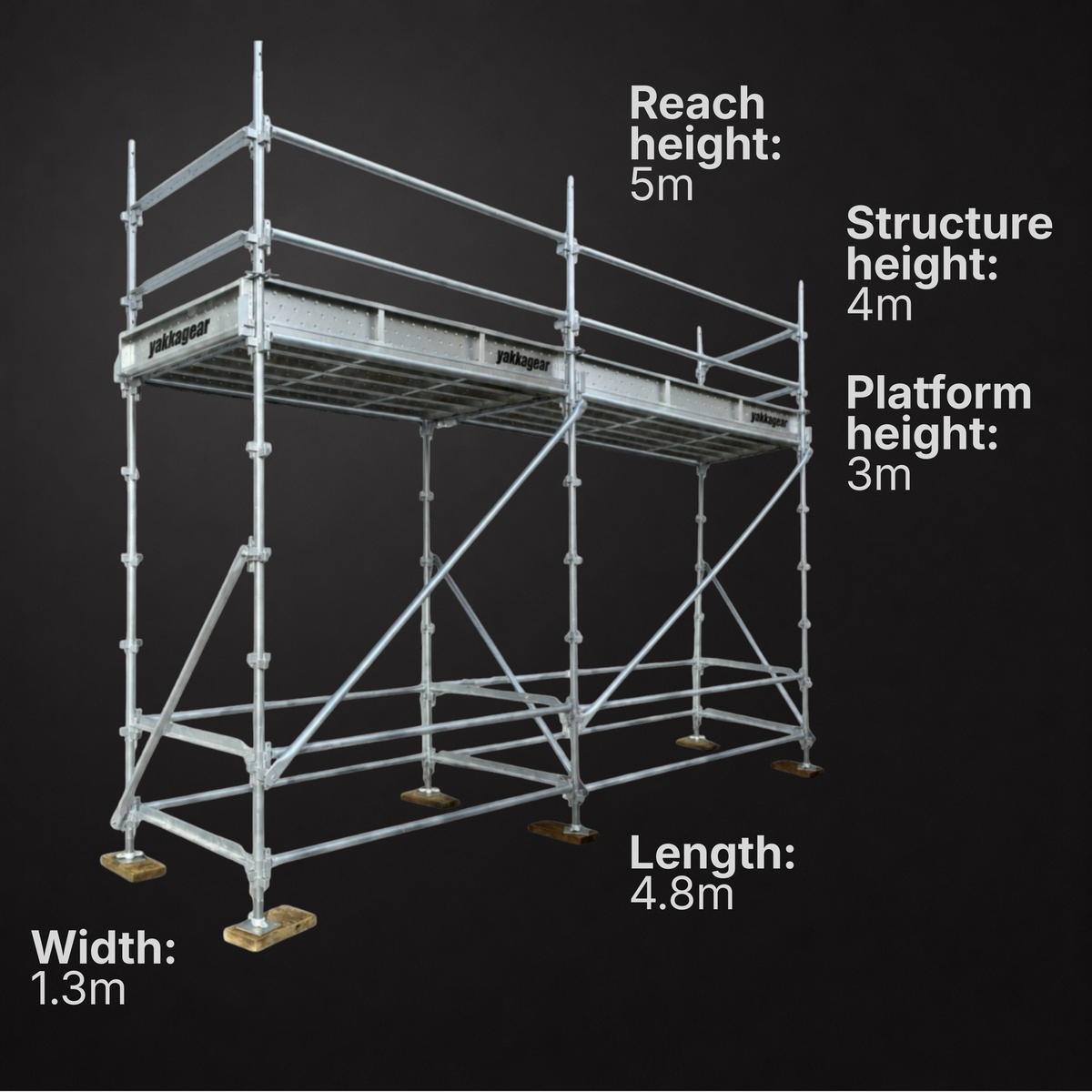

Wide Single Deck: 4.8m L x 1.2m W
Components:
• 6 x Hardwood Soleboards
• 6 x Solid Screw Base Jack
• 6 x 3.0m Standard - Galvanised
• 5 x 1.0m Standard - Galvanised
• 16 x 2.4m Ledger - Galvanised
• 13 x 1.2m Transom - Galvanised
• 1 x 3.2m Brace - Galvanised
• 2 x 2.0m Brace - Galvanised
• 12 x 2.4m Steel Plank - Galvanised
• 2 x 1.2m Steel Plank - Galvanised
• 3 x Toe Board Brackets - Galvanised
• 4 x End Toe Board Brackets - Galvanised -

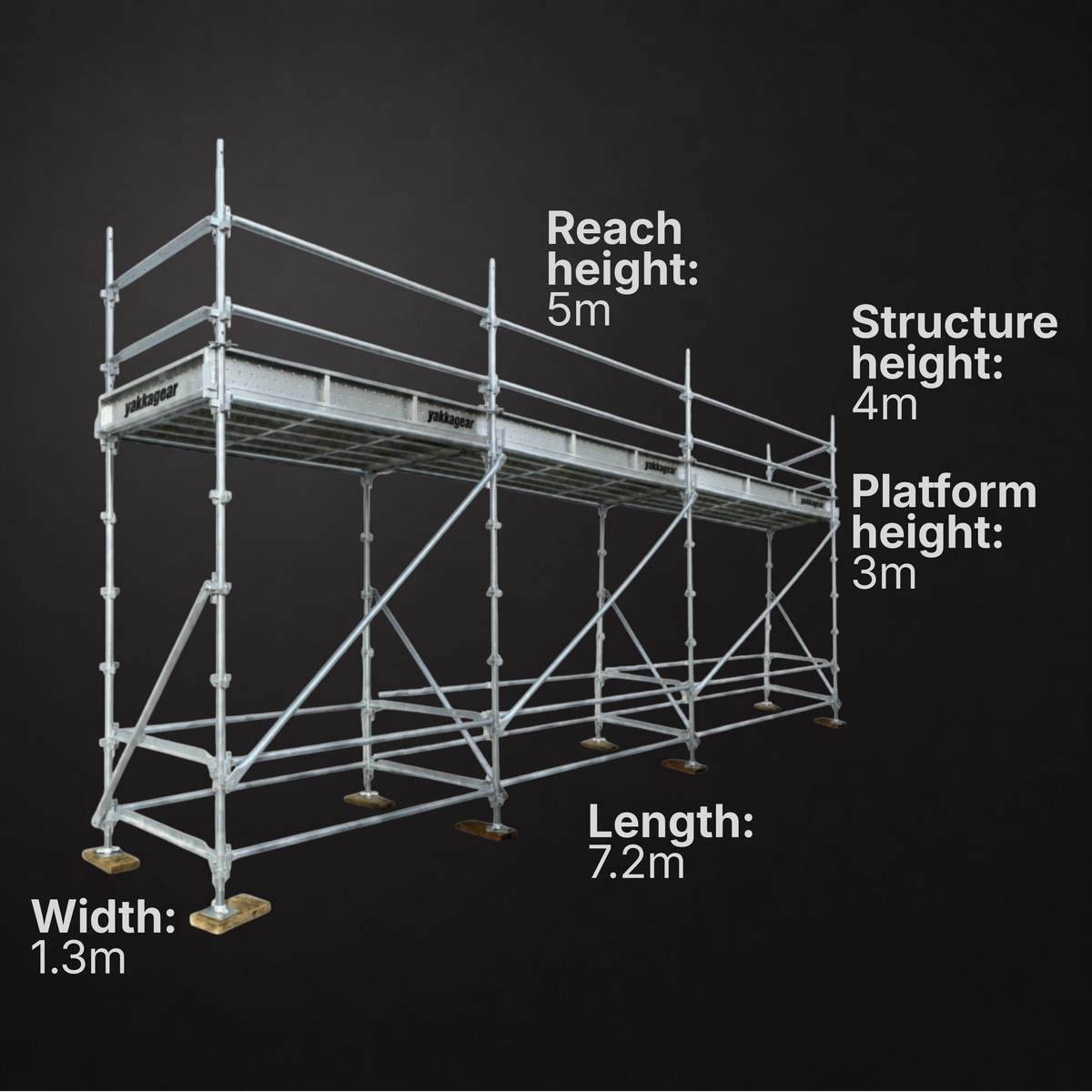

Wide Single Deck: 7.2m L x 1.2m W
Components:
• 8 x Hardwood Soleboards
• 8 x Solid Screw Base Jack
• 8 x 3.0m Standard - Galvanised
• 6 x 1.0m Standard - Galvanised
• 24 x 2.4m Ledger - Galvanised
• 16 x 1.2m Transom - Galvanised
• 2 x 3.2m Brace - Galvanised
• 2 x 2.0m Brace - Galvanised
• 18 x 2.4m Steel Plank - Galvanised
• 2 x 1.2m Steel Plank - Galvanised
• 4 x Toe Board Brackets - Galvanised
• 4 x End Toe Board Brackets - Galvanised
Specifications
-
Safe Work Australia info sheet
View PDFFor latest information, google "Safe Work Australia mobile scaffold"
-
Specs
- AS 4100:1998 Steel structures
- 675kg max load rating
-
Approximate product weights
- 6m Reach Slim Kwikstage Single Deck - 2.4m Long - 427.4 kg
- 6m Reach Slim Kwikstage Single Deck - 4.8m Long - 655 kg
- 6m Reach Slim Kwikstage Double Deck - 4.8m Long - 847.3 kg
- 6m Reach Slim Kwikstage Double Deck - 7.2m Long - 1152.2 kg
- 6m Reach Slim Kwikstage Double Deck - 9.6m Long - 1484.5 kg
- 6m Reach Wide Kwikstage Double Deck - 9.6m Long - 1834 kg
- 5m Reach Slim Kwikstage Single Deck - 2.4m Long - 373.1 kg
- 5m Reach Slim Kwikstage Single Deck - 4.8m Long - 585.3 kg
- 5m Reach Slim Kwikstage Single Deck - 7.2m Long - 816 kg
- 5m Reach Slim Kwikstage Single Deck - 9.6m Long - 1044.3 kg
- 5m Reach Wide Kwikstage Single Deck - 4.8m Long - 707.6 kg
- 5m Reach Wide Kwikstage Single Deck - 7.2m Long - 977 kg
-
Certification and warranty
Warranty
12 months Australian manufacturer's warranty.
Certified
Certified and Compliant scaffolding components: Meets Australian Standard and WorkCover requirements.
FAQ
Kwikstage Scaffolding related questions?
Choose Slim or Wide Kwikstage Scaffold?
- Slim Kwikstage: 0.7m single width platform
- Wide Kwikstage: 1.3m dual width platform.
-----
- Tight access or limited ground space?
Slim Kwikstage recommended. - More room for workers, tools and materials?
Wide Kwikstage recommended. - Working at one main height?
Single Deck setup recommended - Working across multiple levels or wanting less height repositioning?
Double Deck setup recommended - Covering a longer wall or work area?
Longer scaffolding combos recommended
Trestles vs Mobile Scaffolding vs Staged Scaffolding?
- Choose mobile scaffold if you need a lighter, movable tower for smaller jobs, indoor work, maintenance, or tasks where the scaffold needs to be repositioned often.
- Choose Kwikstage scaffold if you need a stronger fixed setup for exterior work, longer wall runs, trade access, rendering, painting, renovations, or construction-style jobs.
What Platform Height requires a licenced scaffolder?
A general rule of thumb is if a Platform Height is more than 4m above ground level, then a scaffolding licence will be required.
View Safe Work Australia's info sheet: click here to learn more.
It is always best to check specifics and/or latest info by googling "Scaffolding WorkCover (NSW / QLD / VIC / SA / WA)" and/or consult a licensed scaffolder.
Yakka Gear does not provide legal advice.
-
Need a more compact scaffold?
Check out Compact Mobile Scaffolding
-
Need to go taller, wider, or longer?
Check out our largest scaffold:
-
Need an easier set up?
Check out Trestles & Handrails and Planks
-
Working outdoors or on uneven ground?
Check out units including adjustable wheels:
-
Need a scaffold that's shorter or smaller?
Check out our smallest Scaffolds:
-
Need something that can support up to 675kg for heavy duty work?
Check out:
Super easy ordering in only 2 steps
-
-
STEP #1
Complete your purchase, and then you will automatically receive a paid invoice email - the paid invoice number will be your order reference number for any enquiries.
If delivery required, contact us to get a delivery quote.
If bank transfer payment, we will confirm your order once payment has cleared.STEP #2
We will email you when your order is ready for pickup (including pickup info, or dispatched for delivery.
We do our best to reply to payment confirmations usually in 1-3 hours.
If you purchased outside of service hours (Weekdays 8:30am-2:30pm Sydney/Melbourne time) it will be the next business day.
Contact
Speak to a consultant
We’re here to help.
If you have questions before making a purchase, need assistance as a current customer, or have any other concerns, contact us today and we'll get back to you shortly.
Queensland (QLD)
Brisbane 07 3123 2718
Sunshine Coast 07 5346 0115
Gold Coast 07 2104 3791
Townsville 07 4426 2724
New South Wales (NSW)
Sydney 02 9161 2992
Newcastle 02 4003 5800
Victoria (VIC)
Melbourne 03 9770 1324
Australian Capital Territory (ACT)
Canberra 02 7251 2288
Western Australia (WA)
Perth 08 6245 0608
South Australia (SA)
Adelaide 08 8164 1059
Email
support@yakkagear.com.au
YAKKA GEAR
ABN 14 592 651 794
Our Story

Proudly serving over 10,469 Aussie tradies, businesses, home renovators since 2015.
Access the best trade pricing upfront.
Super easy online shopping.
A better online viewing experience than in-store.
Browsing and learning about all your choices at your own pace without wasting valuable time standing around at shops/warehouses.
We make sure of stock availability and if you have questions before making a purchase, need assistance as a current customer, or have any other concerns, then we are here to help.
Pick up your order from 2hrs or express delivery from next day.
Access Australia’s fastest delivery network.
Get it delivered directly to your door or worksite to take advantage of the time and cost savings over the Pickup option.
Our delivery network offers a full range of services for all your shipping needs, including:
- Handling of oversized goods with specialised trucks
- Ability to deliver to a variety of locations, including residential, commercial, and worksites
- Driver to call Receiver approx. 30-60min before arrival
- Real-time online tracking, whenever available, to keep you informed and in control
Yakka Gear is your local, Aussie-owned business with Australia-wide locations.
High-quality products designed for Australia.
* Approved to Australian Standards & WorkCover
* Australian manufacturer's warranty
Shop with us for peace of mind.
